Pipe Fittings

RAW MATERIL: PIPES, FLANGES, GASKETS, FASTANERS, FITTINGS SUCH AS ELBOW, TEE, REDUCER, CAP ETC.
IN MATERIAL CARBON STEEL, STAINLESS STEEL AND LOW ALLOY STEEL
MATERIAL SPECIFICATIONS: A106, A105, A181, A312, A234, A193 & A194.
WELDING PROCESS : SMAW & TIG.

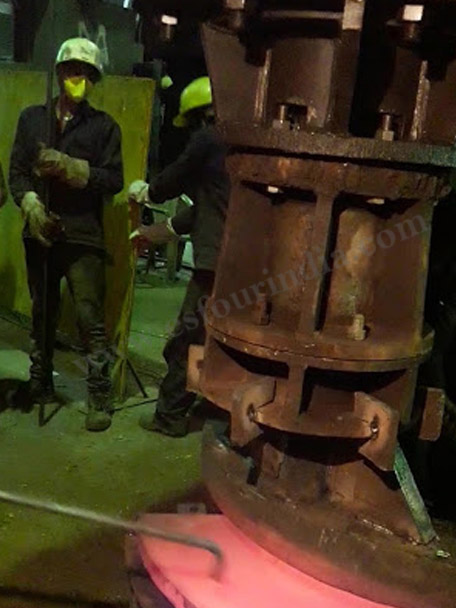

MANUFACTURED ITEMS SUCH AS ELBOWS, BENDS, TEE, REDUCERS, CAPS, LATERAL TEE, BARRED TEE, SPLIT TEE, MITTER BENDS ETC. BY COLD AND HOT FORMING PROCE

List Of Customers

  • LARSEN & TOUBRO LIMITED (MUMBAI), AERO SPACE DIVISION
  • OERLIKON BARMAG
  • FOR PANIPAT REFINERY
  • CONSUMER: RELIANCE INDUSTRIES LIMITED, CUSTOMER: TECHNO PROCESS INDIA PVT. LTD.
  • STEWARTS & LLOYDS INDIA PVT. LTD.

SR.NO. NAME OF PRODUCT TYPE SPECIFICATION SIZE RANGE THICKNESS MATERIAL SPECIFICATION

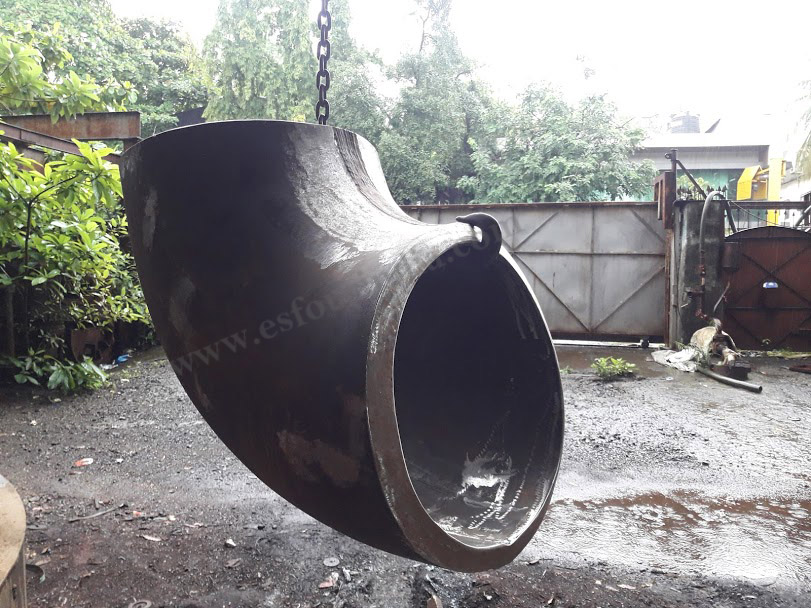

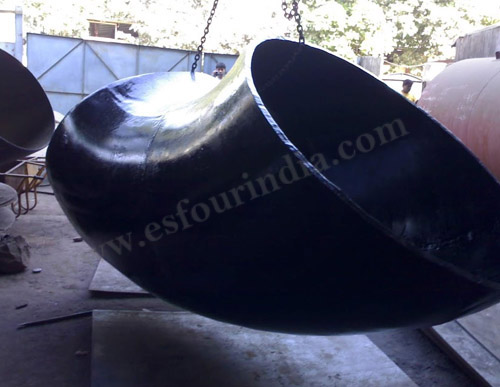

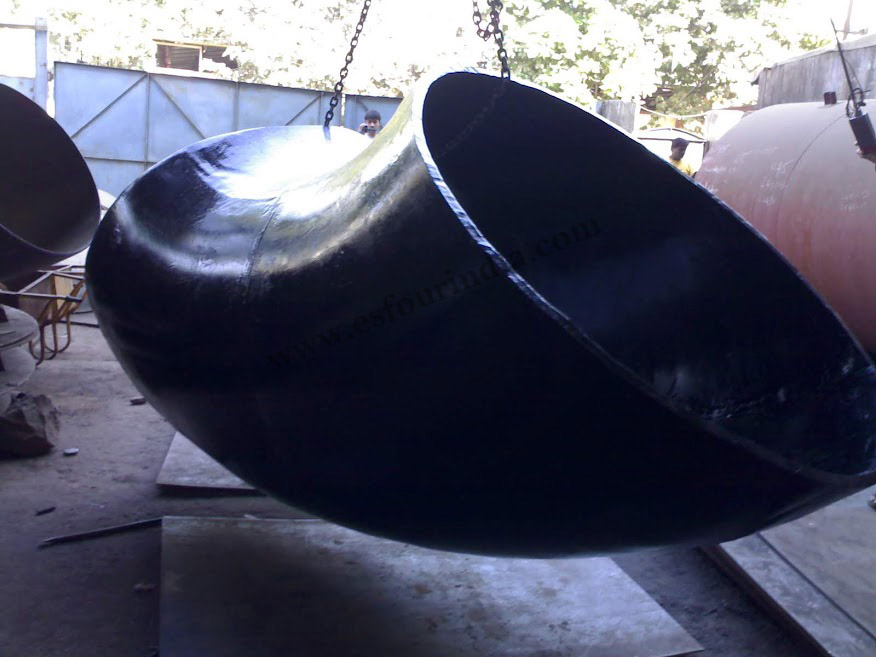

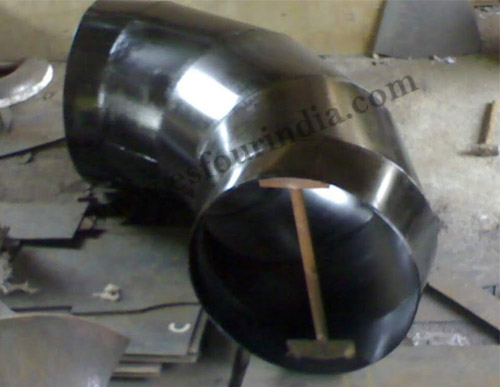

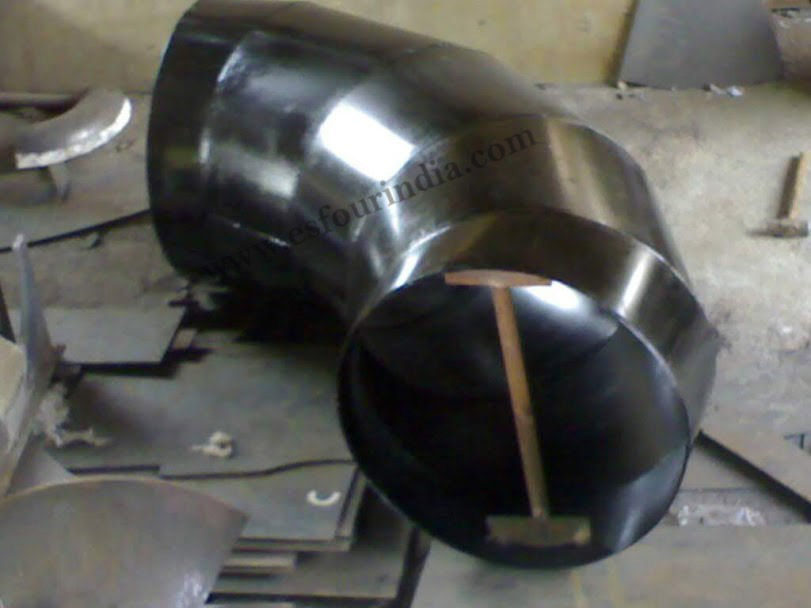

1 ELBOW 90 DEGREE LONG RADIUS DIMENSIONS 4 INCH NB UP TO 45 MM A234 WPB-W
TYPE: IN TWO HALVES 45 DEGREE LONG RADIUS ASME B 16.9 UP TO A234 WPL6
CONSTRUCTION. 90 DEGREE SHORT RADIUS 40 INCH NB A234 WP11
45 DEGREE SHORT RADIUS A403WP 304/316/321/L/H
ANY OTHER SPECIAL DEGREE A240 TYPE 904L
HASTALLOY

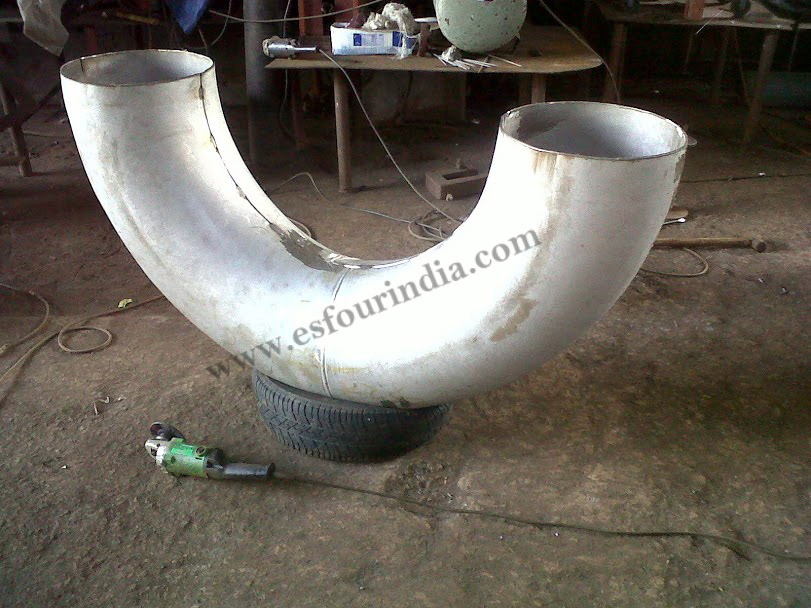

2 BENDS SEAM LESS OR WELDED PIPES. BEND RADIUS 3 D UPTO 10 D UP TO 6 INCH NB SCH.XXS
6 TO 10 INCH NB SCH 80
10 TO 12 INCH NB SCH 40
3 MITTER BENDS PIPE OR ROLLED FROM PLATE AS PER THE REQUIREMENT ANY SIZE 30 MM MAXIMUM. A 106 GRADE B
A 53

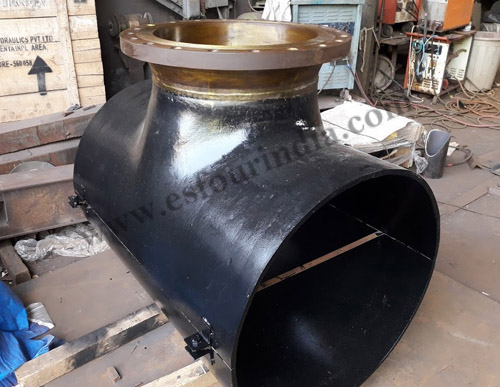

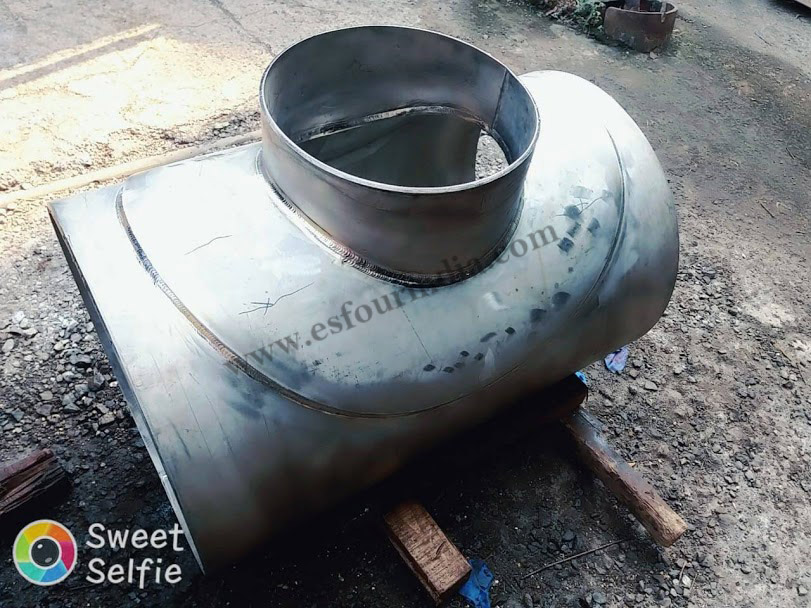

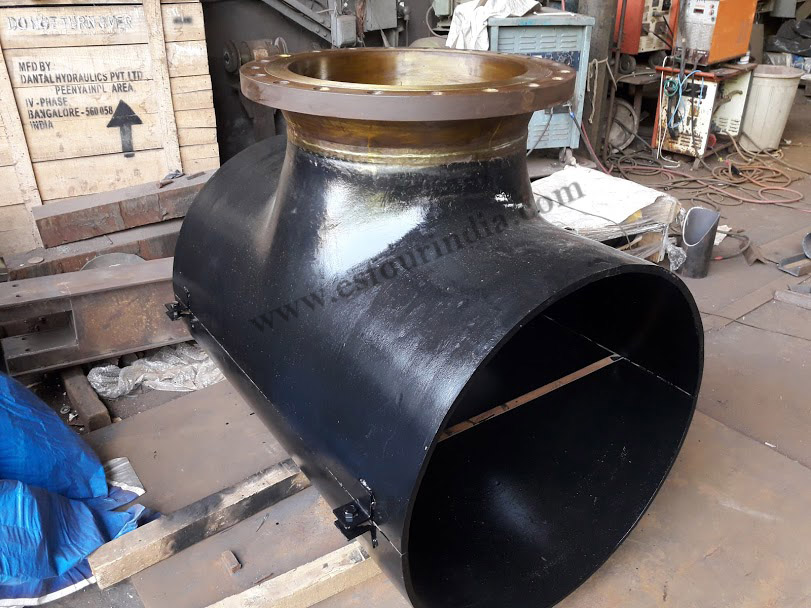

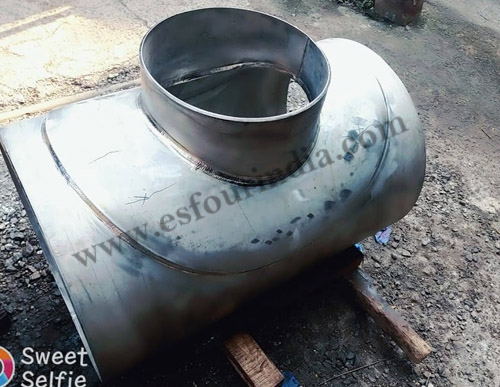

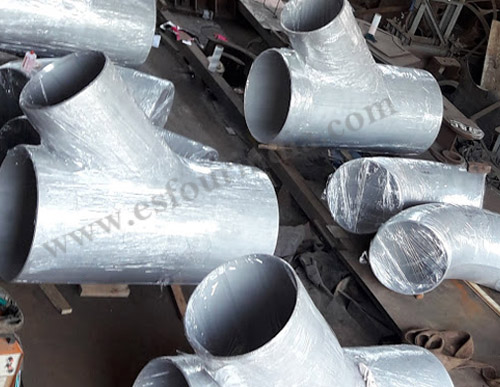

4 TEE EQUAL DIMENSIONS UP TO 24 INCH NB A234 WPB-W
TYPE: IN TWO HALVES ASME B 16.9 A234 WPL6
CONSTRUCTION. 4 INCH TO 12 INCH SCH XXS A234 WP11
A403WP 304/316/321/L/H
12 INCH TO 18 INCH
 SCH 80 A240 TYPE 904L
18 INCH TO 24 INCH
 SCH 40

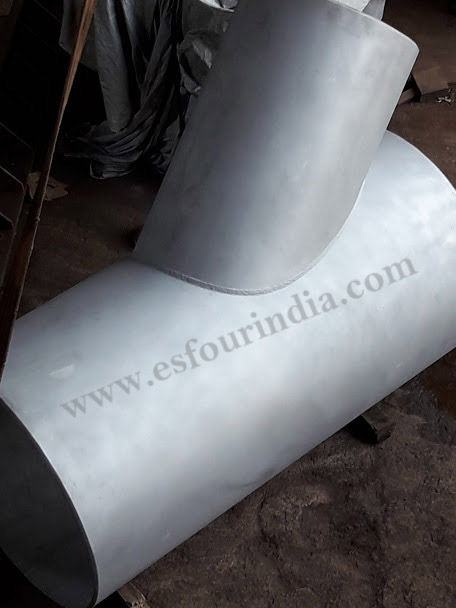

5 TEE BRANCH WELDED AS PER THE REQUIREMENT AS PER THE REQUIREMENT ANY SIZE 30 MM MAXIMUM. A 240 TYPE 304/316/321/904/L
A 516 GR.70 / A36
6 SPLIT TEE AS PER THE REQUIREMENT AS PER THE REQUIREMENT SAME AS SAME AS EQUAL TEE A 234
SEAMLESS / WELDED EQUAL TEE
7 BARRED TEE AS PER THE REQUIREMENT DIMENSIONS SAME AS SAME AS EQUAL TEE A234
SEAMLESS / WELDED ASME B 16.9 EQUAL TEE
8 LATERAL TEE
ANY OTHER SIZES AS PER THE REQUIREMENT
 AS PER THE REQUIREMENT ANY SIZE AS PER REQUIREMENT AS PER REQUIREMENT

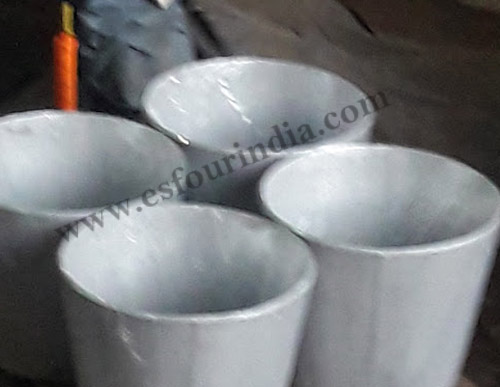

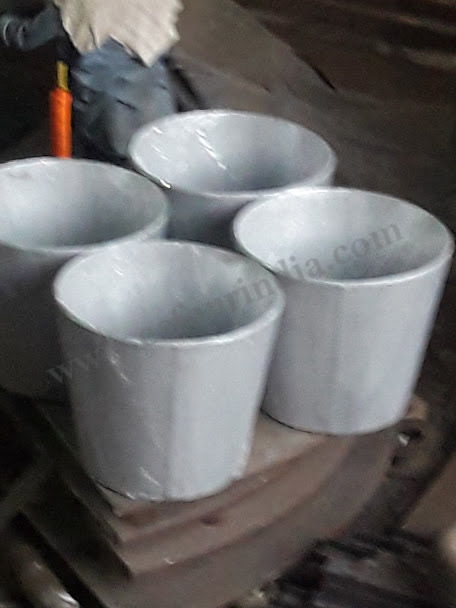

9 REDUCER CONCENTRIC CONICAL, ROLLED FROM PLATE DIMENSIONS UP TO 40 INCH NB AS PER REQUIREMENT A234 WPB-W
ASME B 16.9 A234 WPL6
10 REDUCER ECCENTRIC CONICAL FORMING BY BENDING DIMENSIONS UP TO 40 INCH NB AS PER REQUIREMENT A234 WP11
ASME B 16.9 A403WP 304/316/321/L/H
ANY OTHER SIZES AS PER THE REQUIREMENT
 A240 TYPE 904L
11 CAPS AS PER REQUIREMENT AS PER REQUIREMENT ABOVE 12 INCH NB AS PER REQUIREMENT CARBON & STAINLESS STEEL
